CMAX2 313mm Discovery Slider Kit
Discover a new way to ride... on DOUBLE radius arm suspension!
This CMAX2 kit brings it all, with the ST2 axles, 13mm narrower compared to the usual SCX sizes. This brings the wheels in to the body for that proper scale truck look, and CMAX2 keeps the frame full length at 500mm long, 19.7 inches, filling up the whole body cavity front to back. It's a perfect match.

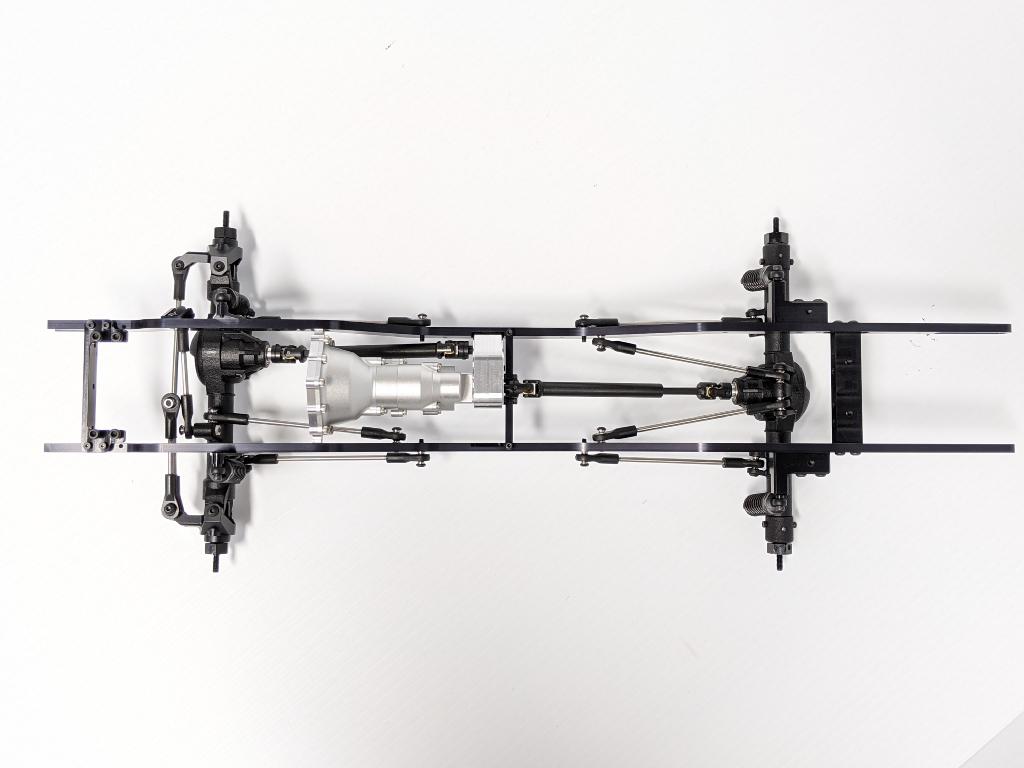

With this Slider Kit you get a giant pile of stuff to build... There's a complete set of Right drop Toyota covered ST2 axles from GCM, sporting Aluminum knuckles, 49deg steering Uni front shafts, 6 bolt lockers, and SCX2/3 compatible gearing. The center drivetrain includes our LRT2 Low Range Scale transmission and OverDrive Tcase, and we've paired it all together with all machined dual radius arm suspension, rubber bushings, steel center driveshafts, and oil filled shocks. It's a complete slider kit ready for you to build up!

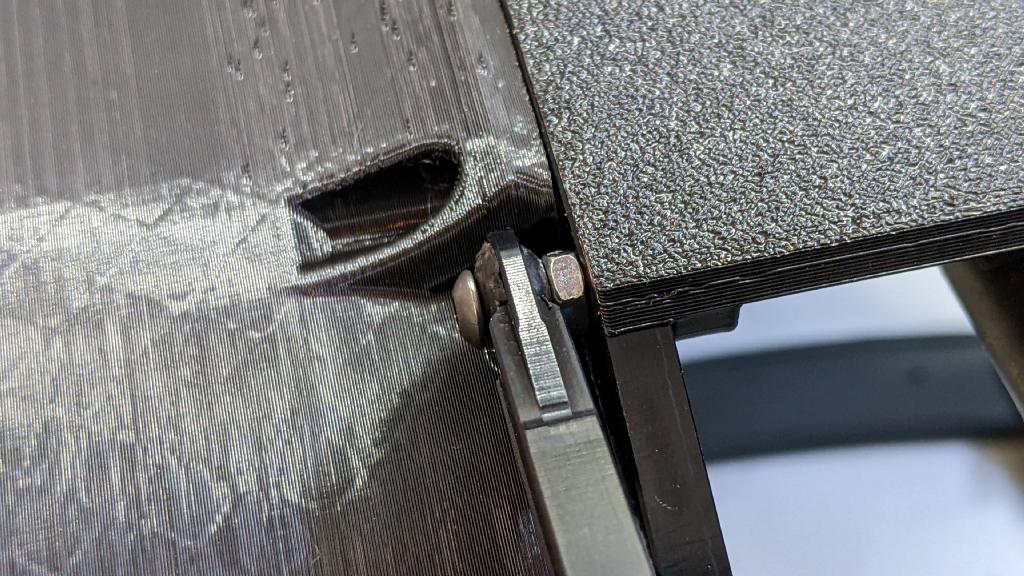

We have designed many mounting kits over the years, including one designed exactly for the Disco body and CMAX2. This is available for download to our Builder's Group on Patreon. For a low cost you can have interactive access to all our downloadable STL mount files including the new CMAX2 items, and ST2 accessories. New chassis and accessory parts are available for this group on a regular basis. Link in to the Builder's Group is shown >>HERE<< and thanks for becoming part of our GCM community!
Here's the downloadable assembly manual for CMAX2 >>CMAX2 Assembly Manual Download<<
All aluminum parts are black anodized, and hardware is black 12.9 tempered.
Includes:
1x ST2 Front Right drop axle set, complete with 3.75:1 high pinion gearing, all steel internals, aluminum knuckles
1x ST2 Steering link set for CMAX2
1x Front and rear Radius Arms with rubber bushings
1x Left rail and 1x Right rail, 500mm long, 19.7 inches
1x Track Bar mount
1x Front servo mount
2x front shock towers
2x Front oil filled coil over shocks
1x Complete LRT2 OverDrive Tcase, scale transmission and motor mount plate
1x Front driveshaft
1x Rear driveshaft for 313mm wheelbase
1x Center Tcase mount for LRT2
1x Rear crossmember
2x Rear shock tower mounts
2x Rear oil filled coil over shocks

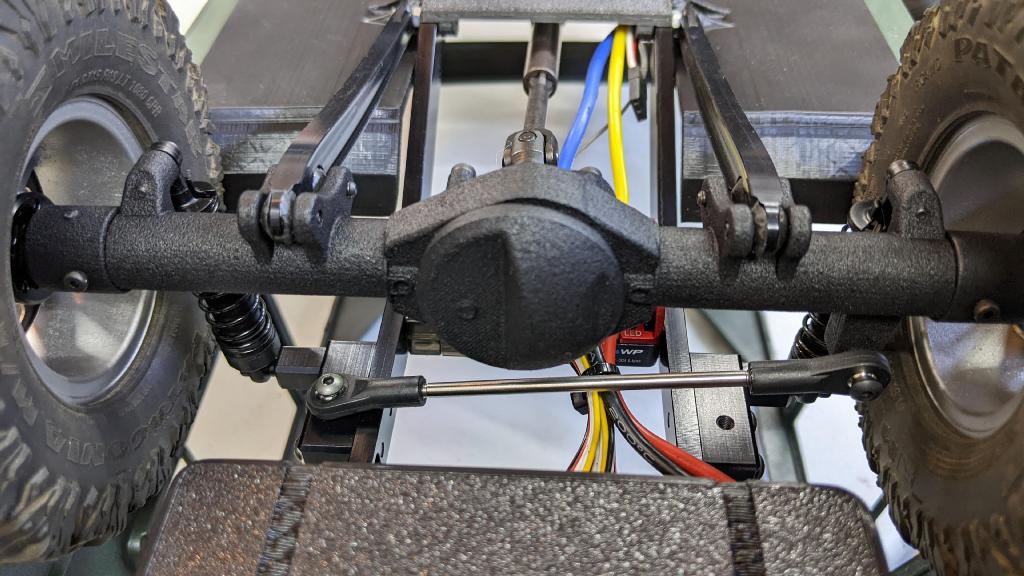

1x ST2 Rear centered axle set, complete with 3.75:1 high pinion gearing, all steel internals
all mounting hardware
